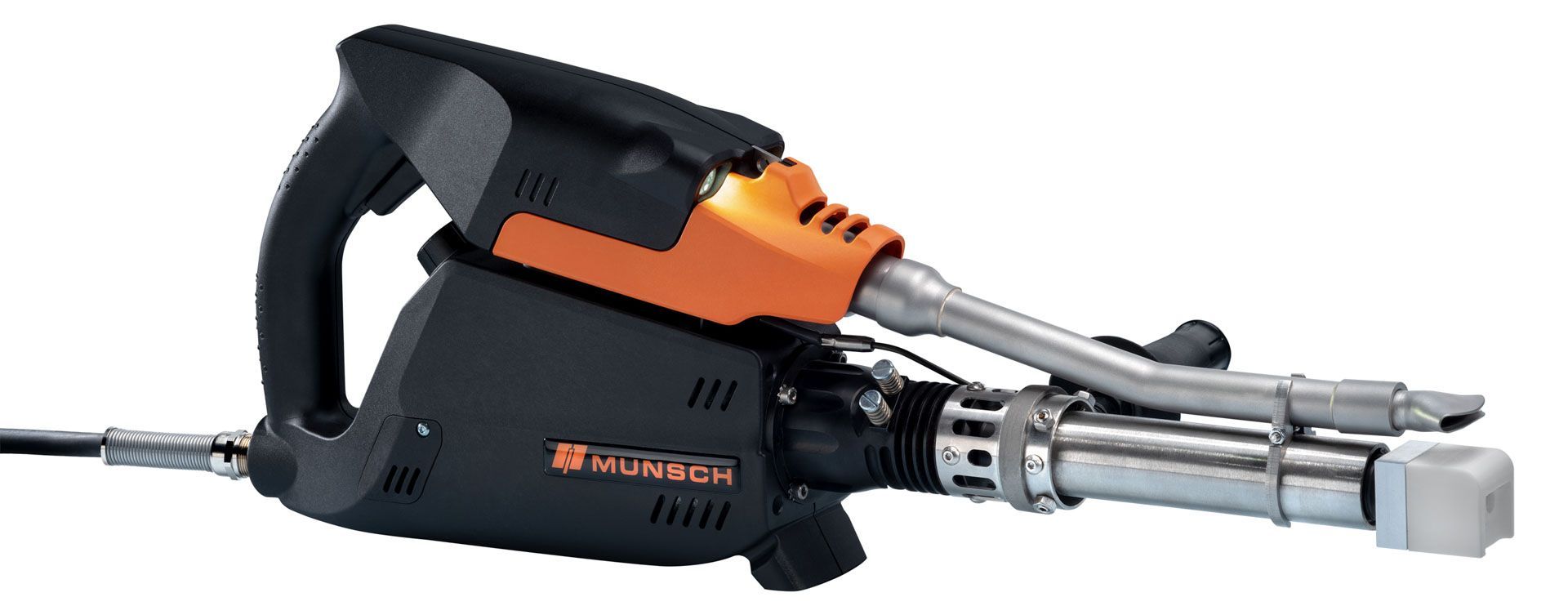

MAX 32 S
Higher performance. Higher power. Designed for building plastic containers.
Powerful welds for thicker parts
The M32 is designed for situations where you need to apply more welding material continuously. This allows you to join thicker plastic components, ensuring superior strength in industrial projects where durability is key.
Stable performance throughout the entire job
Its motor and temperature control maintain a consistent flow so that each bead comes out evenly. This reduces downtime, avoids corrections, and ensures consistent results even on busy days.
More control in every application
With simple adjustments and excellent temperature precision, the M32 helps you achieve clean, high-quality solder joints. Perfect for technicians who need to control every detail of the process.
Ideal for installation and manufacturing in the field or workshop
The M32 performs equally well on a construction site or a production line. Its design makes it easy to transport to any location where quick repairs or direct on-site assembly are needed.
HIGH FLOW WELDING
INDEPENDENT TEMPERATURE CONTROL
COMPATIBLE CON PE, PP Y HDPE
USES AND APPLICATIONS
- Use 3 and 4 mm welding rods
- Warm up quickly before operating
- 360° adjustable shoe for different angles
- Ergonomic handle for better grip
- Motor with thermal protection
- Reinforced body for industrial use
- Ideal for thick and bulky parts
MORE DETAILS
- Designed for industrial manufacturing and repair
- Resistance that meets high quality standards
- Parts and service available in America
- Leading German brand in plastic welding
TIPS MAX-32
ELECTRICAL CONNECTION
New equipment has a European connection; ideally, you should have a European female connector. If that's not the case, we'll show you how to connect it to the American system.
To connect it, we share the following specifications:
IMPORTANT:
- Consider the NEMA in which only the physical ground should be connected (Image).
- Ideally, in the industry, you should use a separate thermal switch from your load center (the amperage range can be from 20 to 30 Amps). If you have any questions, please contact technical support.
GENERATOR CONNECTION
In the Americas, generators have a 240v female outlet, and you must identify the NEMA.
Important:
- Once you have identified the NEMA, you must obtain the male that corresponds to the NEMA.
- You just need to connect L1 and L2, which is the equipment voltage, and add "T" ground.
- When purchasing a generator, you should pay attention to 3 important electrical characteristics:
- Watts
- Voltage
- The most important one is how many Amps it delivers per phase.
We recommend having an extension where you can have a MULTI-CONTACT module so you can connect your equipment independently.
MAINTENANCE
How often should you perform maintenance on your equipment?
- Deductive
Applied by the operator
- Tighten the connections periodically.
- Clean the filters daily.
- Purge the device every time you finish your shift.
- It is important to purge with natural polyethylene welding every month.
- Before connecting your equipment, you should leave your generator running for ten minutes to allow it to stabilize.
- Once 10 minutes have passed, every generator should deliver 235 to 240 volts.
- Before doing this, we suggest you always check your line (L1) to ground with a multimeter and L2 using the same procedure; each phase should deliver above 110 volts. If it is less than 70 volts in any of the phases, do not connect your equipment under any circumstances; send your generator to a service center.
- Preventive
Applied by Munsch Engineering
- Preferably every 350 hours of use.
- Corrective
Immediate supervisor in the Engineering department, Munsch
